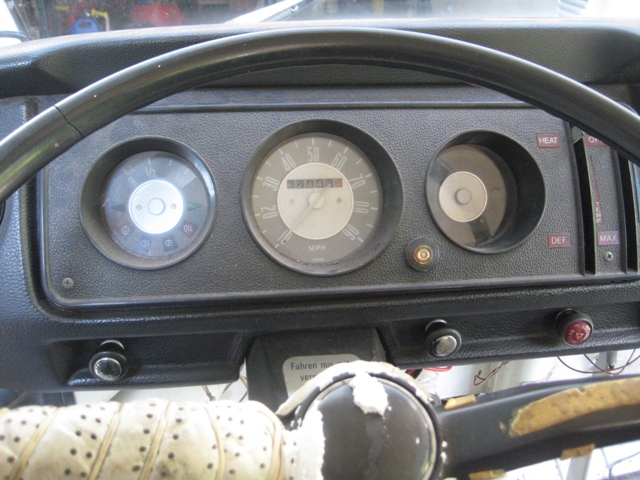

Complete dashboard – pre conversion

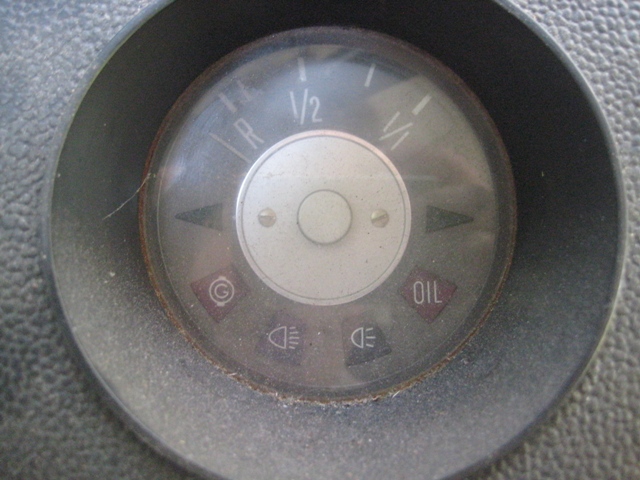

Close up of warning lamps

|Reuse of existing lamps|GEN|Charger interlock enabled|

||OIL|Motor overheat|

|Additional instrumentation|READY|Indicating main power on|

||AMPS|0-1000A range output from shunt on controller panel|

||VOLTS|Traction Pack Volts (80-180v range)|

||AUX|Volts (6-16v range) – reading aux battery|

|Nice to haves|VAC|Vacuum (30-0) – Reading brake booster output|

||SOC|State of charge – possible re-use of the fuel gauge via conversion circuit|

||RPM|Maybe a “Monster Tach” with the shift light set at 4000 rpm :)|

http://www.ecosmotors.com/parts.html have a very nice digital speedo that is drop in replacement for the VW. They list upto ’67, but it should be adaptable. I’m considering my own project to make a similar panel, but replace all the controls.

Removed dash, scrubbed all the gauges. Decided to use the radio slot for the 3 gauges: AMPS, VOLTS and AUX. Need to enlarge top and bottom of the gauge to make it fit.

Need to clean everything!
